Pantera Electonic Select Series Shocks

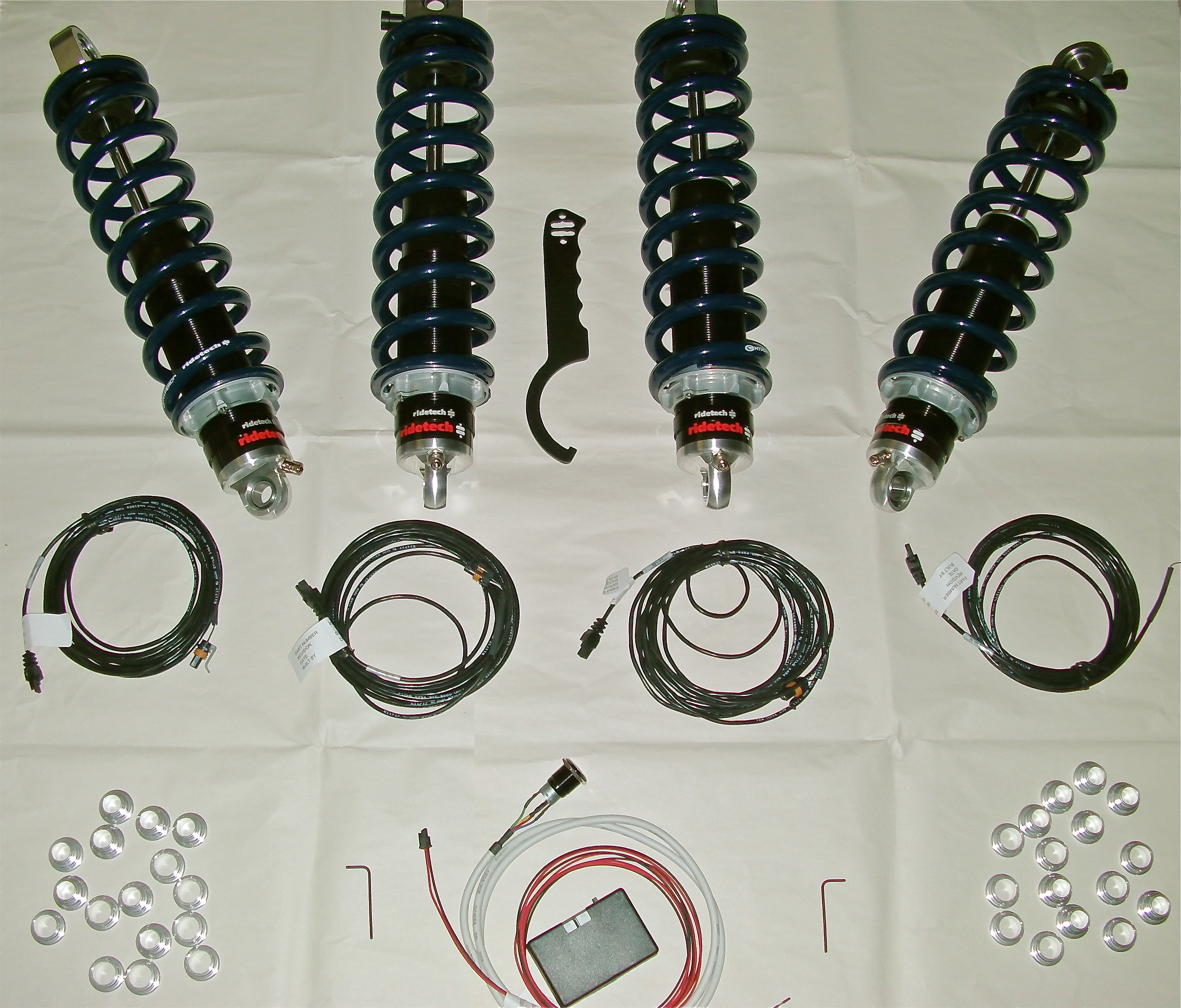

Pantera Coilover Electronically Adjustable Performance Shock. Made in the USA by RideTech also known for their outstanding Air Ride suspension products. This shock was produced via a joint effort between Fox Shocks and RideTech. All spacers included for a bolt on shock for your Pantera. These use the same technology used in the Z06 Corvette. A simple press of a button for Sport mode or soft comfort mode!

Shocks sold individually. Please specify spring rate when ordering. If you get the spring rate wrong don’t fret. Send me your springs and I will send you the springs you wish! No charge except shipping! When ordering 4 shocks please note you will need a shock controller sold separately.

Order a quantity of 2 with the spring rate you want for the front, then order quantity 2 with the spring rate you want to the rear. Lastly, Order a controller.

The Electronically Controlled Select Series Shock is a steel body monotube damper with TWO sets of independent internal valving so you can choose between “cruise-mode” with a soft compliant ride or a firmer “sport mode” for handling performance… all at the touch of a switch!

The heart of the Select Series Shocks are two independent sets of electronically controlled valving inside the monotube damper.

In default mode [no power applied], the lower valving stack is engaged and provides a very compliant ride to optimize a plush ride quality. When power is applied through a dash mounted button, the upper valve stack is engaged to firm up the ride quality and provide extra cornering and handling performance.

This selectable valve technology has been refined and proven on many OEM vehicles over the past 9 years including the Z06 Corvette. SACC Restorations now offers the ultimate solution to the ride quality and handling issues of the Pantera!

Key Features:

> Complete shock and spring weighs 9.5 pounds. Stock rear Pantera shocks weigh ~17 pounds, fronts ~14 pounds. Total weight savings, 24 pounds!

> Electronically selectable soft or firm shock valving at the touch of a switch.

> Proven, reliable OEM electronic damping technology now available to the Pantera market.

> Steel monotube construction allows superior oil control over a wide range of road and track surfaces.

> Durability proven to over 100,000 miles.

> Instant response to valving changes [under 1 second]

HYPERCO Spring Features:

Coil Springs come in a variety of spring rates ranging from 125 to 600 lbs/in

Material: Hypercoils are manufactured from high tensile chrome silicon steelÉthe highest grade available anywhere in the world.

Design: The high tensile wire used in Hypercoils allows lighter weight and additional travel before the coils bind.

Inspection: Hypercoils undergo 2 separate magnaflux inspections to eliminate surface imperfections which could lead to early failure.

Manufacturing: The unique combination of state-of-the-art CNC equipment and small town craftsmen who truly care about the product they are producing make Hypercoils the finest coilsprings available anywhere in the world.

Click Here to View our Electronic Shock Infographic!

Click Here to Order Yours Today!
